1967 FORD MUSTANG

BODY SWAP

Modern muscle beneath a timeless icon — re-engineered on a 2016+ Mustang GT platform.

01 / PROJECT OVERVIEW

An icon,
re-engineered.

We’re taking an icon and rewriting its story — modern performance beneath vintage skin. This restomod-style build fuses the raw, aggressive styling of the 1967 Mustang Fastback with the complete drivetrain, suspension, safety systems and interior of a 2016+ Mustang.

It goes beyond a traditional restomod — it’s a full body swap: every-day reliability, warranty-era engineering and collector-grade presence in one machine.

306 kW

POWER @ 6,350 RPM

530 Nm

TORQUE @ 4,250 RPM

4.8 s

0–100 KM/H

Project Overview — Main car image

02 / THE BUILD CONCEPT

Vintage skin. Modern skeleton.

The iconic 1967 Fastback silhouette is preserved and merged with the complete powertrain, drivetrain and suspension of a 2016+ Mustang GT or Shelby platform.

The outcome? Unmatched handling. The fully independent integral-link rear suspension — lower H-arm, vertical link, upper camber and toe links — delivers superior pitch control under hard acceleration and braking, while high-strength aluminium knuckles cut unsprung mass.

Up front, a new double-ball-joint configuration brings better road feel, a smoother ride and razor-sharp precision.

Unmatched Handling

Fully independent integral-link rear suspension keeps the car planted.

Serious Stopping Power

Brembo six-piston front brakes haul it down faster than you can say “whoa-boy”.

DSC + Traction Control

Dynamic Stability Control® and TCS monitor the road and your inputs in harmony.

Precision Steering

Electric Power-Assisted Steering with double-ball-joint front geometry.

03 / THE FORMULA

Two legends. One machine.

🔴 BASE BODY

1967 Mustang Fastback body shell — brand new.

No rust, no patch panels, no destroyed classic. A fresh, factory-true shell ready for paint in any colour and trim you choose.

🔴 DONOR PLATFORM

2016+ Mustang GT — complete modern platform.

Full powertrain, suspension, electronics, safety systems and interior. 2016+ Shelby, Roush or Super Snake donors available on request.

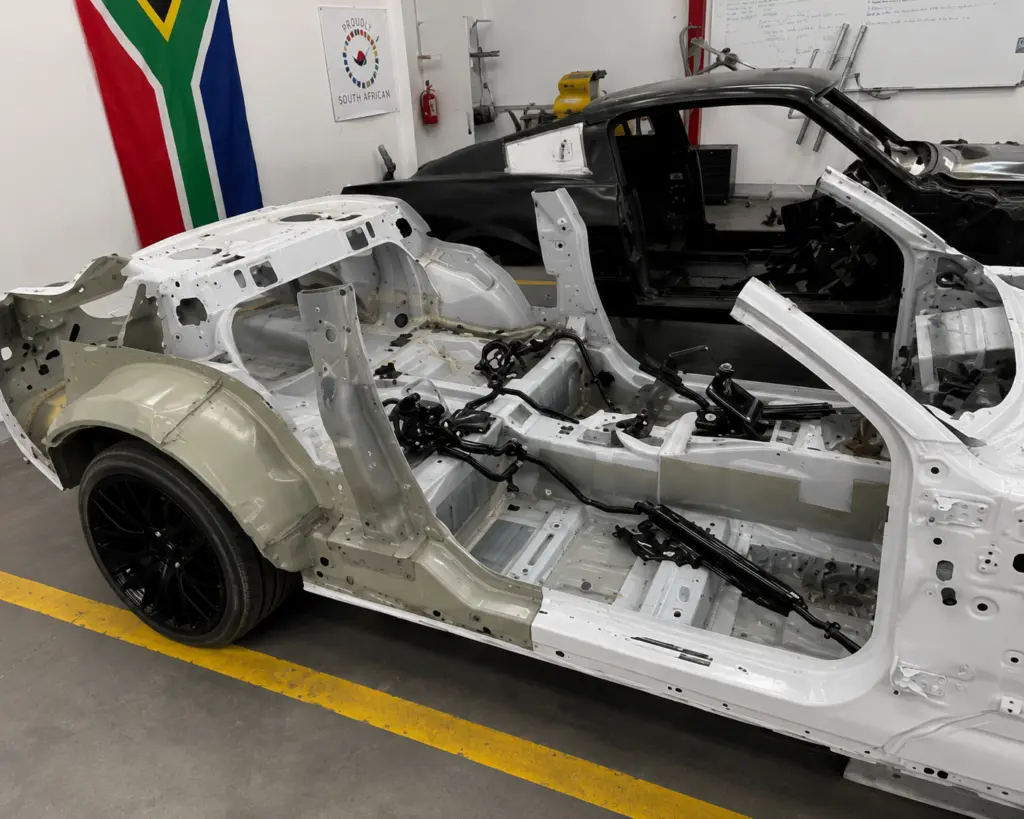

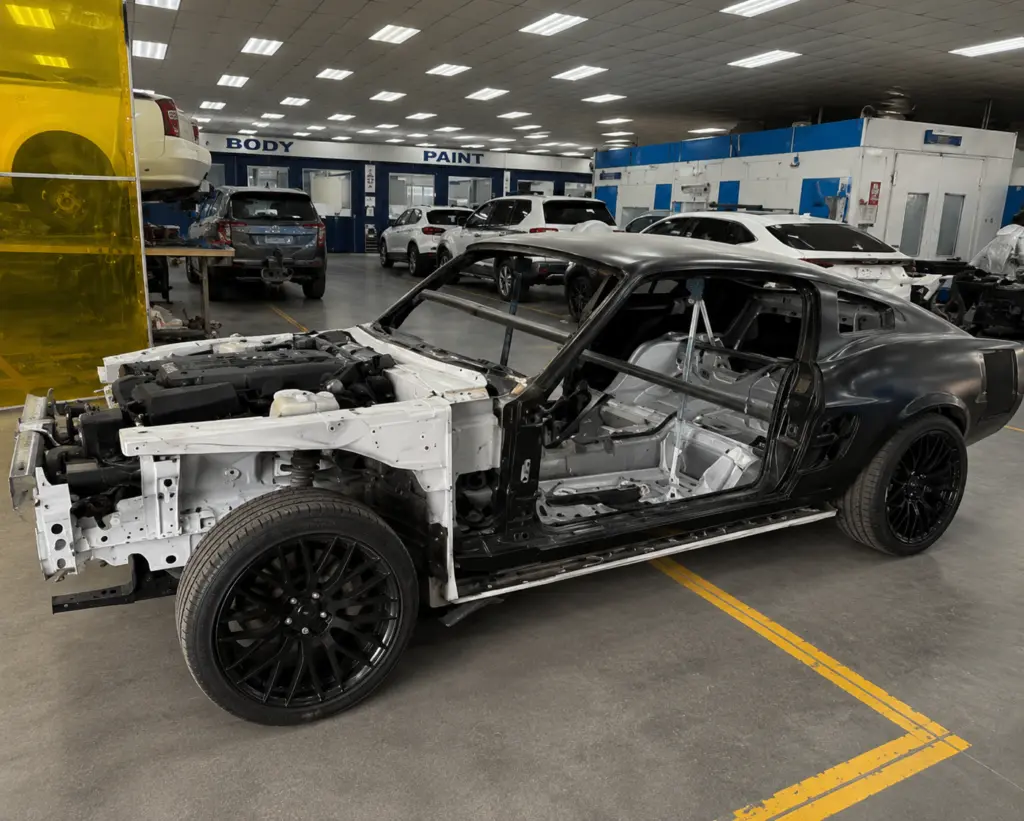

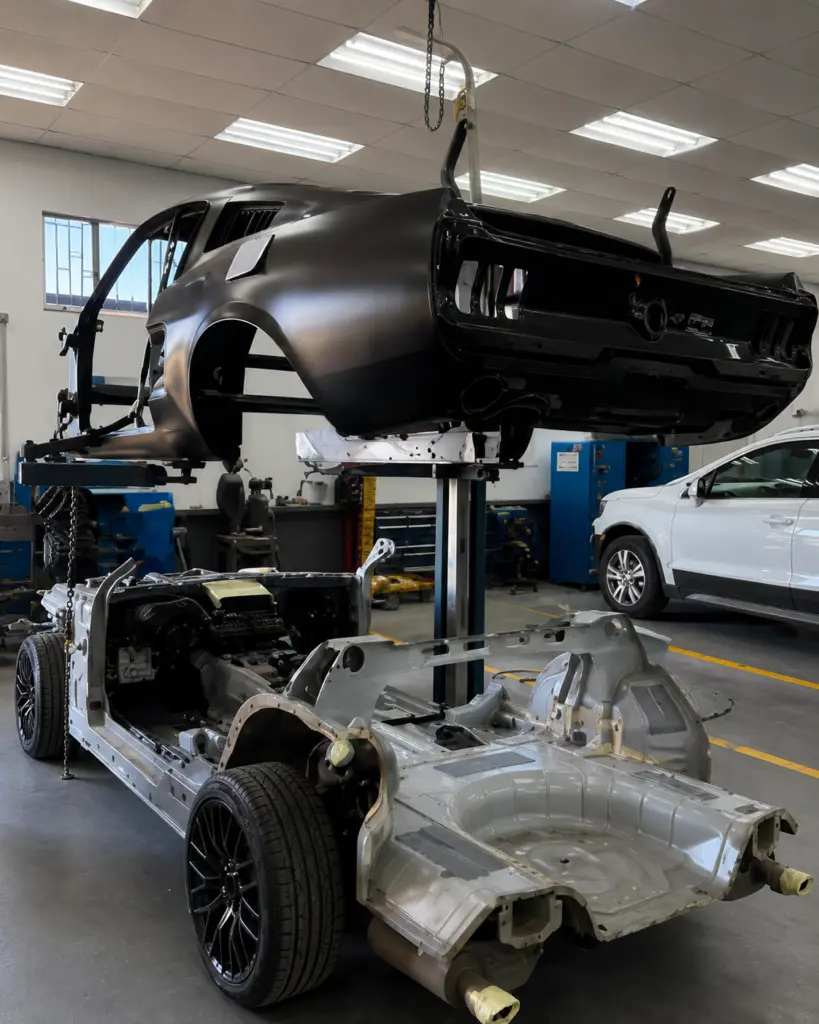

04 / IN THE WORKSHOP

Precision at every stage.

  • Donor stripped, measured and jig-mounted on Car-O-Liner benches
  • Modern floorpan, rails and firewall mated to the ’67 shell
  • Every seam factory-checked before sealing and paint prep

Built in-house by All American Muscle, Alrode.

05 / POWERTRAIN

The legendary 5.0L V8.

Hear its roar. Feel the torque. Experience acceleration that pins you to the seat. The heart of this build is Ford’s formidable 5.0-litre Coyote V8 — truly legendary. What further evidence do you require?

6-SPEED MANUAL

Standard, with 3.31 limited-slip rear axle for pure driver engagement.

6-SPEED SELECTSHIFT® AUTO

Optional. Paddle shifters for manual-like control, plus fuel savings at idle. 3.55 LSD axle.

SEQUENTIAL MULTIPORT INJECTION

Modern fuel delivery with Easy Fuel® capless filler and a 61 L tank.

5.0 LITRES OF AMERICAN V8

06 / SPECIFICATIONS

Built to perform.

Drivetrain

  • Front suspension: Independent MacPherson strut, tubular stabiliser bar
  • Rear suspension: Fully independent, coil springs, integral-link, 3.15 axle
  • Brakes – front: 380×32 mm vented discs, Brembo 6-piston fixed callipers
  • Brakes – rear: 330×25 mm vented discs, integral parking brake
  • Steering: Electric Power-Assisted Steering (EPAS)

Performance Pack

  • K-Brace + unique chassis tuning
  • Upsized rear sway bar
  • Heavy-duty front springs
  • Limited-slip rear axle
  • Wheels & tyres – front: 19×9″ Ebony Black alloys, 255/40 R19
  • Wheels & tyres – rear: 19×9.5″ Ebony Black alloys, 275/40 R19

Engine & Gearbox

  • Max power: 306 kW @ 6,350 rpm
  • Max torque: 530 Nm @ 4,250 rpm
  • 0–100 km/h: 4.8 seconds (manual)
  • Transmission: 6-speed manual standard; 6-speed auto with paddle shifters optional
  • Fuel system: Sequential multiport injection, 61 L tank, Easy Fuel® capless filler

07 / EQUIPMENT

Fully loaded. Nothing left out.

Interior & Comfort

  • Climate-controlled leather seats (heated + cooled)
  • 8-way power seats with lumbar support
  • Dual-zone climate control
  • Leather steering wheel — tilt + telescoping cruise & audio controls
  • Ambient lighting & aluminium pedals
  • Auto-dimming rear-view mirror

Tech & Audio

  • 8″ colour touchscreen with SYNC® 3 voice control
  • 7-speaker sound system
  • Bluetooth® phone integration & text support
  • Dual USB + iPod integration
  • Intelligent access with push-button start
  • Rear-view camera

Exterior & Safety

  • Dual-front + side-impact airbags
  • Dynamic Stability Control® (DSC)
  • Automatic HID headlamps, LED tail lamps & DRLs
  • Remote keyless entry, perimeter alarm & PATS immobiliser
  • Tyre Pressure Monitoring System
  • MyKey® & dual exhaust

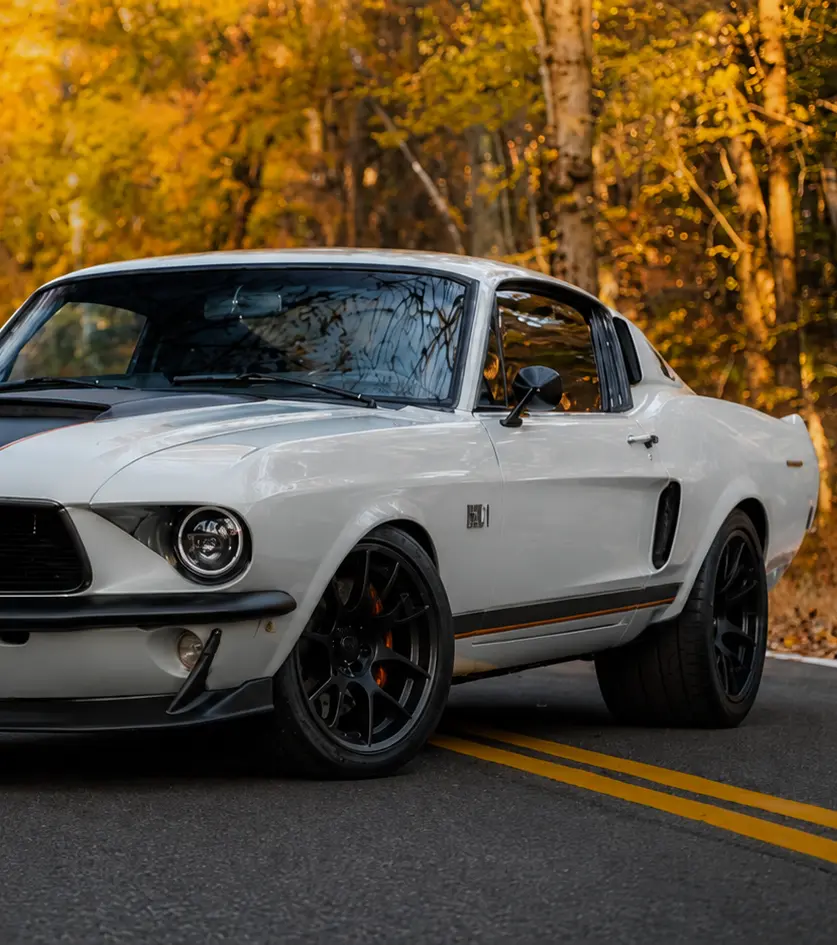

08 / THE FINAL PRODUCT

Concept renderings of the finished build.

Finished in any colour, stripe and trim combination you specify.

09 / THE OPPORTUNITY

Why this build?

  • Iconic, in-demand silhouette — Restomod-style ’67 Fastbacks command global attention from collectors and enthusiasts alike.
  • Turn-key, drive-it-daily usability — Modern reliability, safety, climate control and connectivity — a classic you actually use.
  • New shell. No compromises. — Built on a brand-new body — no rust repair, no donor classic destroyed, no hidden history.
  • Built to your specification — GT, Shelby, Roush or Super Snake donor; your colour, stripes, wheels and interior.
